Description
Technical Data
FAQ
Manual
System
3D oscillation
Transformer 3in1
Tower
Accessories (included in the set)
Remote control
Remote control
Remote control
Power
997 m3/h
361 m3/h
6.7 m/s
Power level
10
8
3
Colors
White
White
White, Black
Weight, kg
4.6
4.6
5.8
Dimensions, mm
276 x 820 x 261
349 x 954 x 226
249 x 1090 x 249
Gross, kg
6.39
7.17
7.816
Packaging, mm
492 x 346 x 340
600 x 387 x 317
203 x 1142 x 281
Electricity consumption, W
1.7-28
1.6-28
36-60
Noise level
25-52 dB(A)
24-53 dB(A)
33-52 dB(A)

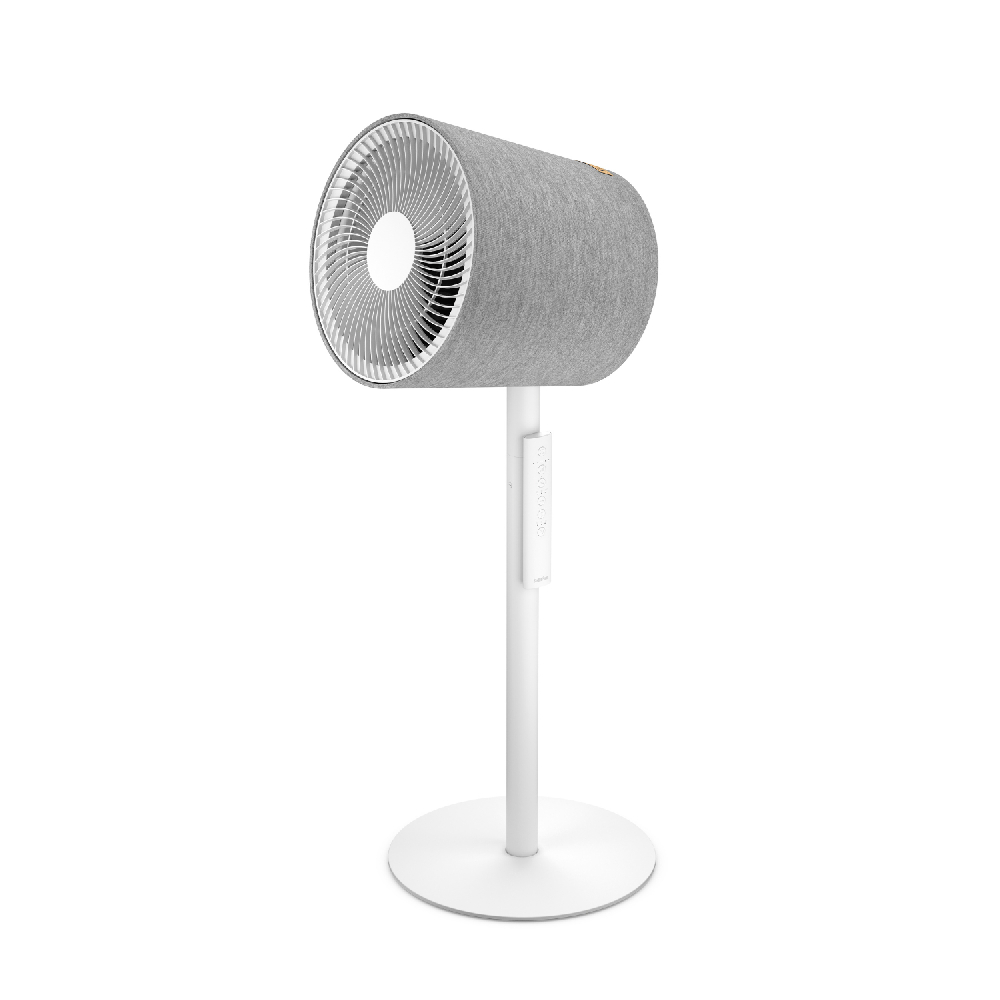

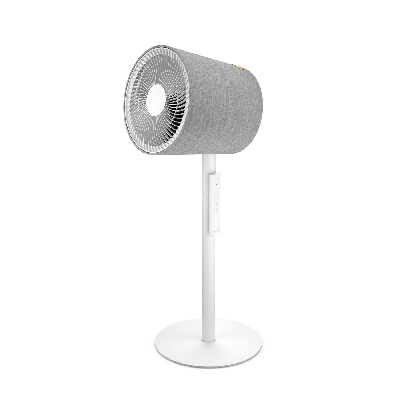

How should I clean Simon’s textile cover?
To clean the textile cover, start by detaching Simon’s fan housing from the pole. Now you can remove the 4 screws on the back of Simon holding the air inlet grille in place and the single screw underneath for the air outlet grille. There are small openings in the textile cover which are used to fit it over the front and back of the housing. All of these must be released. The textile cover can be washed at 30° C on a gentle wash cycle. The cover must be completely dry before you fit it to the device again. When refitting the textile cover, make sure that the hole for the pole is in the right place. If it is, you can pull the textile cover over Simon’s fan housing again. Make sure that all the holes line up properly on the front and back of the housing. Finally, replace the two grilles (air inlet/air outlet) and tighten all 5 screws again. In this video, we show you from second 44 how to remove and reattach the textile cover.
How do I connect Simon’s remote control?
Switch Simon on using his foot-operated switch. Then press and hold down the on/off button on the remote control for 5 seconds until you hear a bleep. This indicates that connection was successful, and you can now control Simon using his remote control. In this video we explain the procedure step by step.
